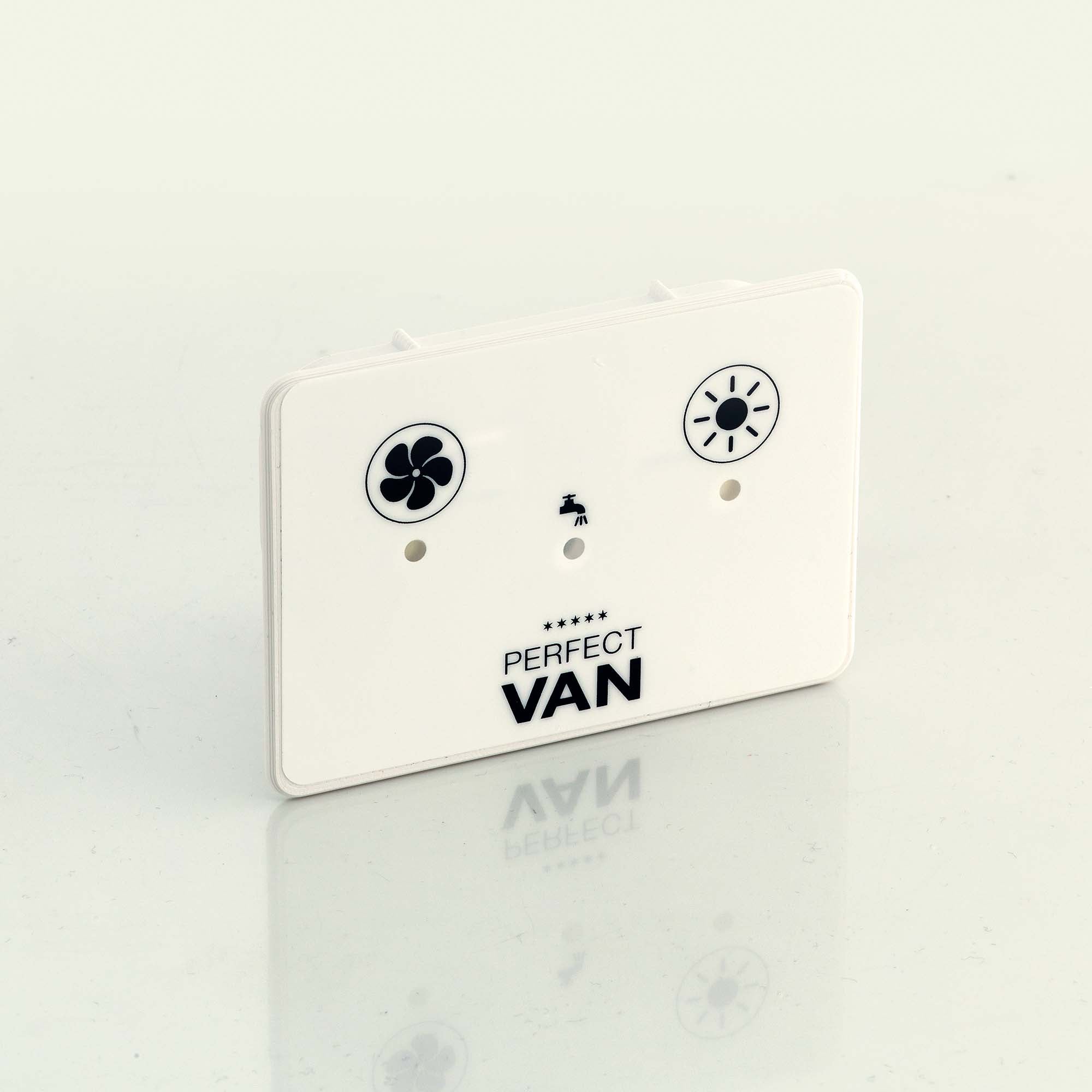

Perfect Van Control-Kit weiß für die Thetford C220

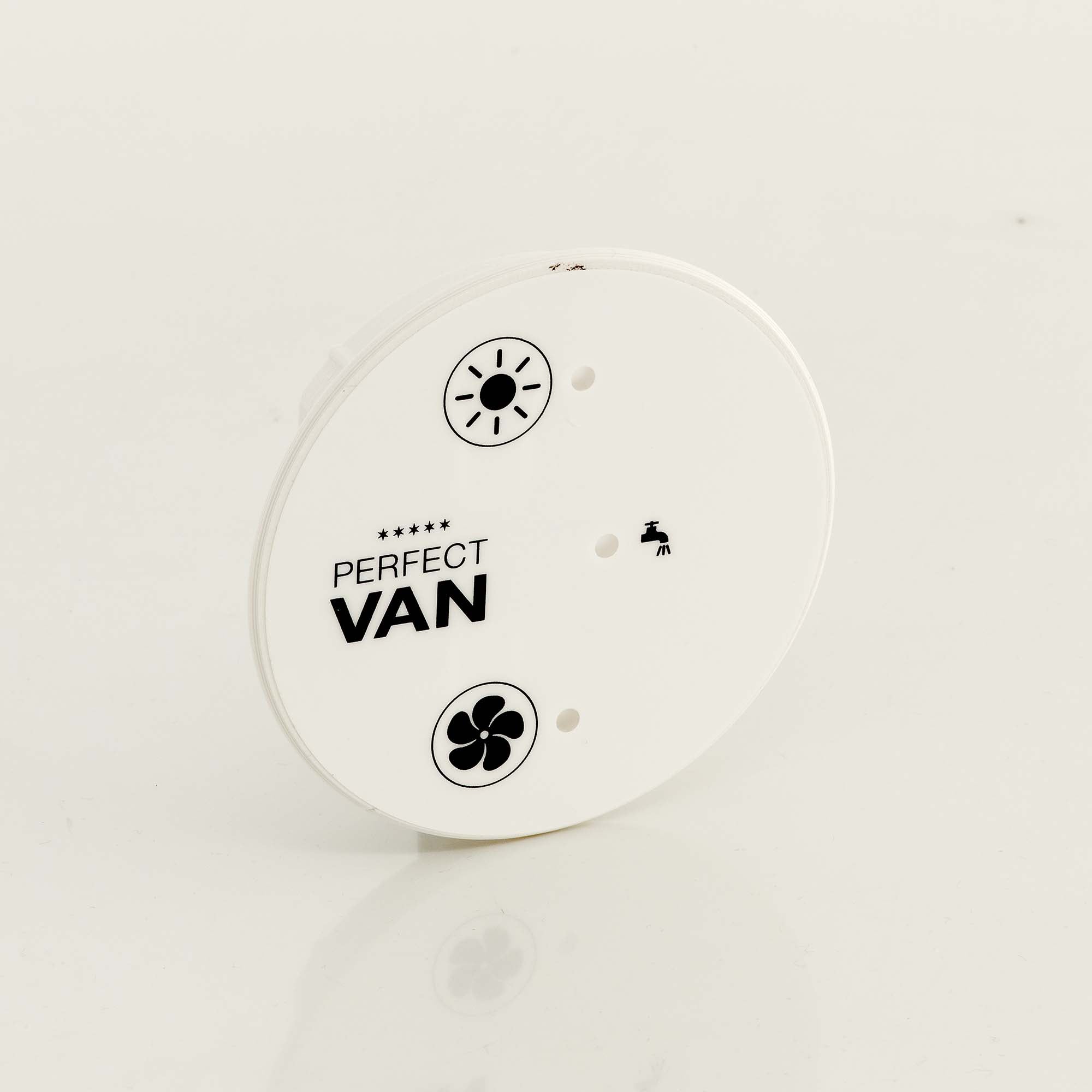

Perfect Van Control-Kit weiß für die Dometic CT4110

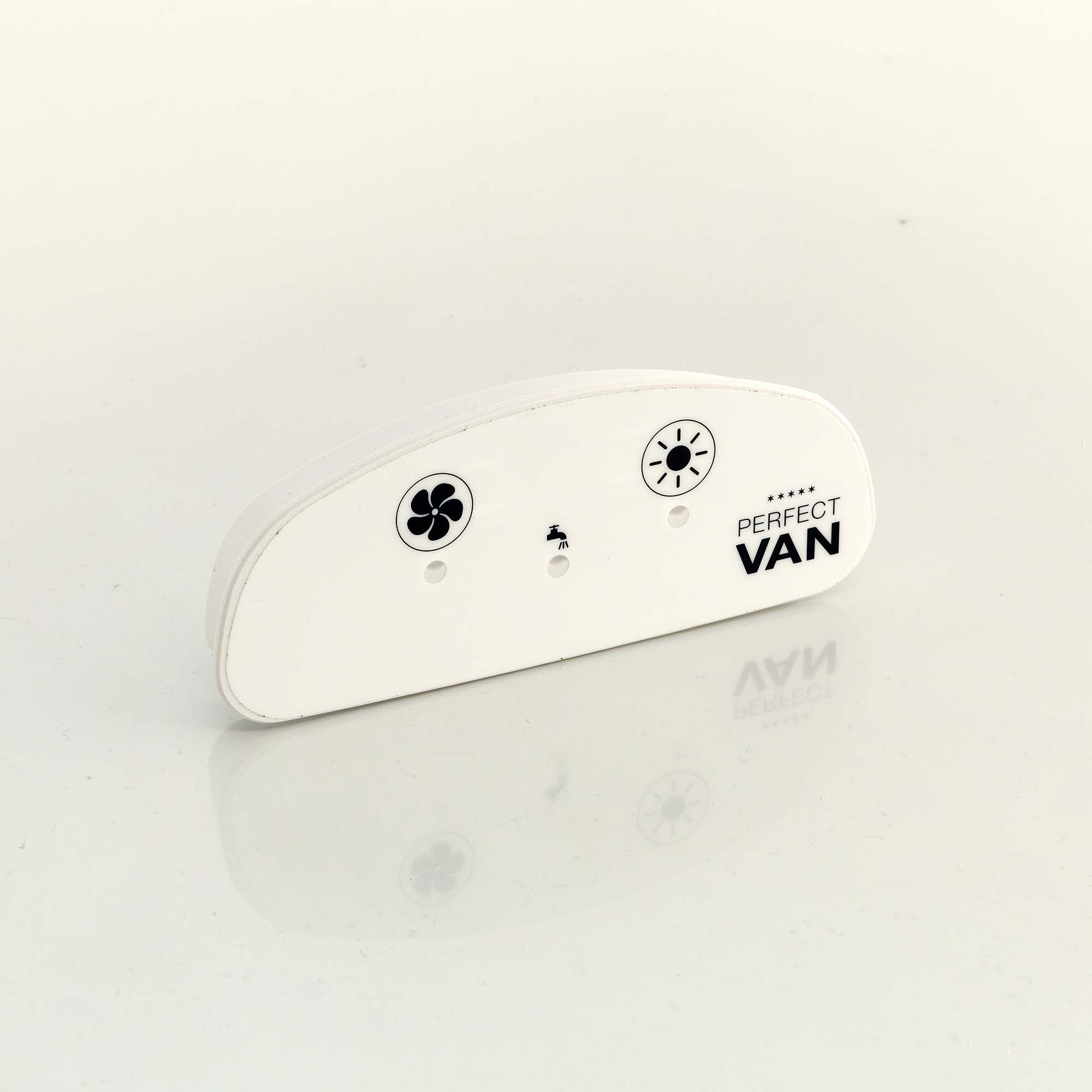

Perfect Van Control-Kit weiß für die Thetford C200
Product details

With the control kit, you can make Perfect Van's dry separation toilet perfect!

A control panel is integrated inside the vehicle. A level switch and a fan control switch (Perfect TTT Air kit, SOG...). This is attached to the control housing (in disposal shaft) connected.

The vehicle's submersible pump can also be activated using the control housing. It only requires a quick coupling and a shower fitting to create an outdoor shower with a cold water function.

Control kit consisting of

  • Control panel inside in white (level indicator and fan activation)
  • Control housing with switch for shaft lighting and water pump

If you want to connect your SOG fan, you still need adapter pieces for the hose. DiesYou can also find it here in the shop!
Note that with a SOG roof and floor fan, a cable must be laid from the fan to the shaft in order to be able to connect it to the control housing.

Scope of delivery

Control panel suitable for
C220 / C260 / C200 / C400 / C500 or Dometic
Control housing
CAT6 (PoE) patch cable
Mainboard for control panel
Sub-board for control housing
2 screws and a retaining clip for fixing the circuit board
2 screws for closing the control housing
Additionally, for C200 and Dometic:
Wiring harness with circuit board flat connectors, terminals,
7.5 A fuse + fuse holder
Additionally for Thetford C260 / C400 / C500:
Wiring harness with circuit board flat connectors and flat connector tongues

Perfect Fit
  • Fits perfectly into the respective recess in the furniture construction.
  • Available in black or white
Technical data

Supply voltage:
12 V (the power supply must ensure 1A at nominal voltage)


The maximum pump power of 70 watts must not be exceeded.
will be exceeded.

Instructions & Assembly

SOG fan connection

  • If you want to connect your SOG fan, you'll also need adapter pieces for the tubing. You can find these and other items here in the shop.
    Please note that with a SOG roof and floor fan, a cable must be laid from the fan to the shaft in order to connect it to the control housing.

Additional information on special control panels:

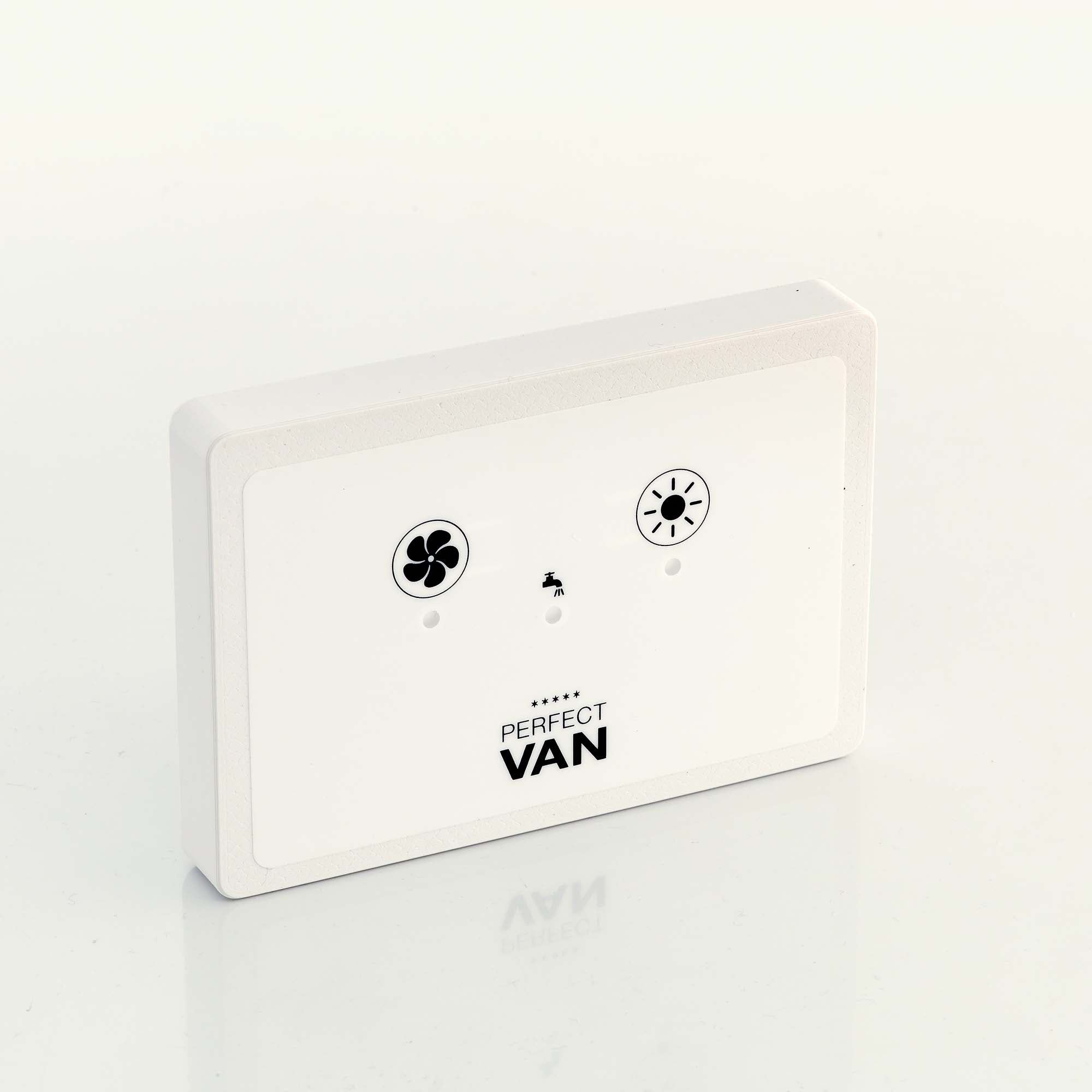

  • C260 PLUS: For all Malibu vans where the control panel is located above the toilet's swivel lever. Sufficient space is ensured on the wall behind it (bed side).
    C220 Front-mounted unit: For vehicles with a front-mounted plastic box (similar to a toilet cistern), this special control panel must be ordered.

Please note:

  • We manufacture our products to the best of our knowledge and belief to enable the most precise 1:1 replacement possible. However, due to manufacturing tolerances, the variety of installation situations (especially with bench toilets), and tolerances in furniture construction, it may still be necessary to make individual adjustments (e.g., to the furniture construction or gap covers) directly in the vehicle.
  • The tabs on the control kit must be carefully and individually shortened with a cutter or chisel. This is necessary to ensure that all users can fit the panel. This is not a valid reason for a complaint.
  • Should installation according to the customer's specifications not be possible, the customer is free to return the toilet within 30 days in its original packaging and with the hygiene seal intact.
  • Use only within the scope of its intended purpose.

User manual

GPSR manufacturer information

Perfect Van GmbH
Rudolf-Diesel-Straße 31
74354 Besigheim
info@perfect-van.de

imprint

Perfect Van

Perfect TTT Control-Kit White

€189,90

Tax included. Shipping calculated at checkout

SKU: TTT-C-C220-01
version:Thetford C220
Quantity:

★ Perfectly fitting control panel in the vehicle interior

★ Control panel with fill level indicator and fan activation

★ Control box with switch for shaft lighting and water pump

Apple Pay Google Pay Maestro Mastercard PayPal Shop Pay Visa
Product details

With the control kit, you can make Perfect Van's dry separation toilet perfect!

A control panel is integrated inside the vehicle. A level switch and a fan control switch (Perfect TTT Air kit, SOG...). This is attached to the control housing (in disposal shaft) connected.

The vehicle's submersible pump can also be activated using the control housing. It only requires a quick coupling and a shower fitting to create an outdoor shower with a cold water function.

Control kit consisting of

  • Control panel inside in white (level indicator and fan activation)
  • Control housing with switch for shaft lighting and water pump

If you want to connect your SOG fan, you still need adapter pieces for the hose. DiesYou can also find it here in the shop!
Note that with a SOG roof and floor fan, a cable must be laid from the fan to the shaft in order to be able to connect it to the control housing.

Scope of delivery

Control panel suitable for
C220 / C260 / C200 / C400 / C500 or Dometic
Control housing
CAT6 (PoE) patch cable
Mainboard for control panel
Sub-board for control housing
2 screws and a retaining clip for fixing the circuit board
2 screws for closing the control housing
Additionally, for C200 and Dometic:
Wiring harness with circuit board flat connectors, terminals,
7.5 A fuse + fuse holder
Additionally for Thetford C260 / C400 / C500:
Wiring harness with circuit board flat connectors and flat connector tongues

Perfect Fit
  • Fits perfectly into the respective recess in the furniture construction.
  • Available in black or white
Technical data

Supply voltage:
12 V (the power supply must ensure 1A at nominal voltage)


The maximum pump power of 70 watts must not be exceeded.
will be exceeded.

Instructions & Assembly

SOG fan connection

  • If you want to connect your SOG fan, you'll also need adapter pieces for the tubing. You can find these and other items here in the shop.
    Please note that with a SOG roof and floor fan, a cable must be laid from the fan to the shaft in order to connect it to the control housing.

Additional information on special control panels:

  • C260 PLUS: For all Malibu vans where the control panel is located above the toilet's swivel lever. Sufficient space is ensured on the wall behind it (bed side).
    C220 Front-mounted unit: For vehicles with a front-mounted plastic box (similar to a toilet cistern), this special control panel must be ordered.

Please note:

  • We manufacture our products to the best of our knowledge and belief to enable the most precise 1:1 replacement possible. However, due to manufacturing tolerances, the variety of installation situations (especially with bench toilets), and tolerances in furniture construction, it may still be necessary to make individual adjustments (e.g., to the furniture construction or gap covers) directly in the vehicle.
  • The tabs on the control kit must be carefully and individually shortened with a cutter or chisel. This is necessary to ensure that all users can fit the panel. This is not a valid reason for a complaint.
  • Should installation according to the customer's specifications not be possible, the customer is free to return the toilet within 30 days in its original packaging and with the hygiene seal intact.
  • Use only within the scope of its intended purpose.

User manual

GPSR manufacturer information

Perfect Van GmbH
Rudolf-Diesel-Straße 31
74354 Besigheim
info@perfect-van.de

imprint

Perfectly suited:

Perfect TTT Control-Kit Black

Perfect TTT Control-Kit Black

€189,90

Perfect TTT Air-Kit

Perfect TTT Air-Kit

€139,90

Perfect TTT DoorConnect with magnet

Perfect TTT DoorConnect with magnet

€79,90

FAQ

We recommend using a fan. OurFan setwith theDoor Connect(Necessary when accessing through the inspection hatch) is designed for continuous 24/7 operation. The fan consumes approximately 0.54 Wh.

Yes, existing SOG fans can usually be used. The exception is the SOG ceiling fan. The wiring for this is so complex that we disable the SOG ceiling fan and install our own. We offer suitable adapter pieces for all common SOG systems.

With proper handling, virtually no odor is produced. Odor formation when excrement mixes is caused by the release of gases such as hydrogen sulfide, ammonia, and methane. Various bacteria and yeasts that decompose the nutrients are responsible for the noticeable odors. Therefore, the solids are covered with litter. We recommend ourActivated carbon litter, as it absorbs moisture particularly effectively. Due to its high activated carbon content, it binds significantly more than coconut fibers or wood shavings. In the liquefied mass, as found in a cassette toilet, bacteria, yeasts, and the enzymes produced are especially active. Furthermore, the air supply intensifies the odor. The typical urine smell arises primarily from the combination with water, especially with the dissolved calcium. The limescale that forms over time also contributes to the odor. OurPerfect TTT Urine StonePrevents limescale and odor buildup. The longer urine is collected, the stronger the odor becomes. Therefore, our composting toilets have a maximum canister capacity of ten liters, which is sufficient for approximately two to four days. Generally speaking, odors increase with rising outside temperatures, so we always recommend using a fan.

No! Our TTT works purely by gravity. However, we utilize the existing 12V line and have a dedicated...electronicsDeveloped to control the light, fan, and outdoor shower (submersible pump). The existing water line can also be used and...outdoor showerThey can be repurposed. Both are optional, but not necessary for the toilet to function.
